Modifications and specifications.

2003

• Sachs HD clutch kit.

• Fiero GT 87 2,8l V6 engine.

• Prothane poly bushings, front and rear.

• Prothane poly bushings for front and rear swaybar.

• Prothane poly swaybar end link kit front and rear.

• Koni adjustable shock absorbers front and rear.

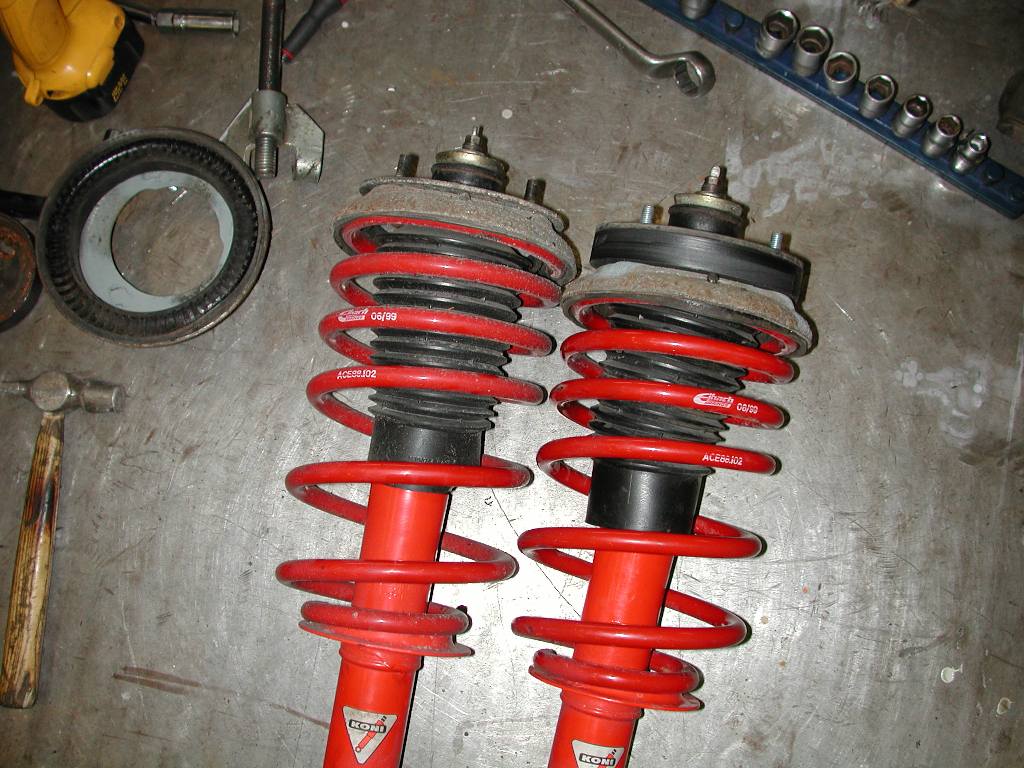

• ACE / Eibach 88 lowering spings.

• The strut top plates are turned upside down to get more suspension travel in the rear end, before hitting the bump stops.

• Toyo R881 R-tyres. 195/55-15 front and 205/50-15 rear on stock Fiero 88 rims

• Temp gauge "fix".

2004

• Rebuilt steering rack with parts from Rodney Dickman.

• Bridgestone RE540 R-tires. 215/50-15 front and 225/50 "soft" on stock Fiero 87 rims

• Lifted the rear 20mm (3/4") by installing nylon spacers between top plate and upper coil seat to get higher roll center.


        Front alignment:

• 1.8 degrees negative camber.

• 6 degrees caster.

• 1,5mm (1/16 inch) toe out New 2004 (before 3mm (1/8 inch) toe out.

• Koni's full soft.

• Tire pressure: 33 psi (Adjusted depending on traction and temperature)

        Rear alignment:

• 2.3 degrees negative camber (before 2.0 degree)

• 3mm (1/8 inch) toe in.

• Koni's 1 turn from full soft.

• Tire pressure: 33 psi (Adjusted depending on traction and temperature)
